JBL VRX932LA-1WH 12" Two-Way Line Array Loudspeaker System
$2,735.00
In stock
SKU
VRX932LA-1WH
JBL VRX932LA-1WH 12" Two-Way Line Array Loudspeaker System
| Condition | Brand New |
|---|---|
| Country of Manufacture | Mexico |
JBL VRX932LA-1WH 12" Two-Way Line Array Loudspeaker System

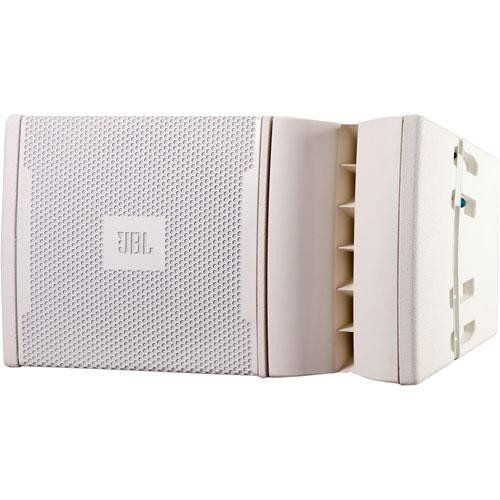

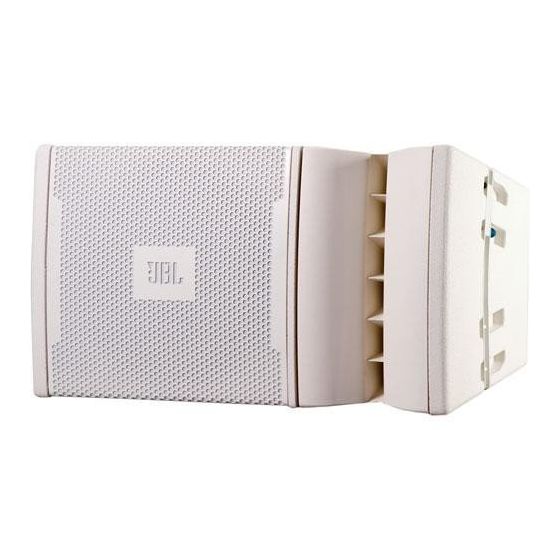

The VRX932LA-1WH is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
FEATURES
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand. - Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
- Array Configuration Selector permits “array shading” in passive mode.
SPECIFICATIONS
| Power Rating | 800 W / 1600 W / 3200 W | |
| Frequency Range | 57 Hz - 20 kHz (-10 dB) | |
| Dimensions (H x W x D) |
343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in) |
|
| Frequency Response | 75 Hz - 20 Hz (+/-3db) | |
| Coverage Pattern | 100 x 15 nominal | |
| Crossover Modes | Bi-amp / passive, externally switchable | |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz | |
| System Maximum SPL | Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak | |
| System Sensitivity (1w @ 1m | Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL |
|
| LF Driver | 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps. |
|
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver |
|
| Nominal Impedance | Passive: 8 ohm Bi-amp LF: 8 ohm Bi-amp HF: 8 ohm |
|
| Active Tunings | Tunings available at www.jblpro.com | |
| Enclosure | 18 mm, 11-ply birch plywood | |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit | |
| Finish | Black DuraFlex™ finish | |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam | |
| Input Connectors | Neutrik® Speakon® NL-4 (x2) | |
| Net Weight | 21 kg (46 lb) | |
| Optional Accessories | VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole, 41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only |
