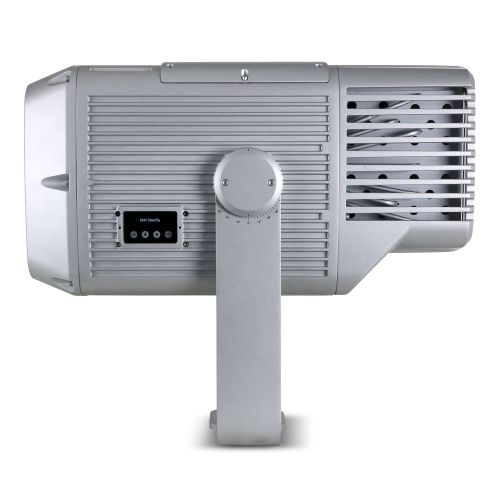

The Exterior Projection 1000 is an unparalleled, powerful tool for permanent outdoor installations to integrate textures, patterns and graphics for limitless creative exterior lighting designs.

Sporting high impact and low maintenance, this advanced, IP66-rated LED projector offers sharp image quality, dynamic features and great reach over huge distances.

Creating custom gobos for building facades

Learn more about our product verification and reliability

Flat-field, high-contrast image projection with wide zoom range

Fully weatherized with low maintenance and running

Full CMY color mixing for maximum creativity

Built to last

It operates at temperatures from -30°C to 45°C and its robust, vandalism-proof IK08 and IP66-rated aluminum housing is surface treated to comply with the ISO12944/C5-M corrosion protection standard

Low total cost of ownership

20 000 hours' lamp life equals 8 hours' daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector.

Creative tool box

Four effect layers—gobos, prisms, animation, variable frost—along with a full CMY color mixing system, an additional color wheel as well as zoom and focus offer unlimited creativity

Easy installation

Easy access to swift replacement of standard gobos with customized gobos, and a strong bracket offers quick mounting in any vertical position. Comes with bare-end power and DMX in/out cables for connection to a nearby junction box.

Easy control

Remote controlled via 20-channel DMX protocol. RDM functionality for remote setting of address, reading of diagnostic information such as fixture running hours, LED running hours and temperature. Built-in OLED display to configure the fixture and program a standalone show with up to 20 scenes.

High precision optical system

Flat field, high contrast image projection based on high power LED engine. The wide zoom range from 10° - 40° allows for exact projection on desired surface.

Built to last

It operates at temperatures from -30°C to 45°C and its robust, vandalism-proof IK08 and IP66-rated aluminum housing is surface treated to comply with the ISO12944/C5-M corrosion protection standard

Low total cost of ownership

20 000 hours' lamp life equals 8 hours' daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector.

Creative tool box

Four effect layers—gobos, prisms, animation, variable frost—along with a full CMY color mixing system, an additional color wheel as well as zoom and focus offer unlimited creativity

Easy installation

Easy access to swift replacement of standard gobos with customized gobos, and a strong bracket offers quick mounting in any vertical position. Comes with bare-end power and DMX in/out cables for connection to a nearby junction box.

Easy control

Remote controlled via 20-channel DMX protocol. RDM functionality for remote setting of address, reading of diagnostic information such as fixture running hours, LED running hours and temperature. Built-in OLED display to configure the fixture and program a standalone show with up to 20 scenes.

High precision optical system

Flat field, high contrast image projection based on high power LED engine. The wide zoom range from 10° - 40° allows for exact projection on desired surface.

Feature:

• Flat field, high contrast image projection based on high power LED engine
• 0-100% electronic dimming
• Full CMY color mixing + additional color wheel with 7 interchangeable colors
• 7 gobo slots for projecting graphic images (gobos included)
• Animation system for creating animated lighting effects (horizontal and vertical)
• Zoom range from 10° - 44° for exact projection on desired surface
• Variable frost for creating morphing effects and hybrid function as wash light
• 2 rotating prisms for creating abstract multi patterns
• Intuitive setup, configuration and stand-alone programming via graphical OLED display
• RDM and DMX control
• Fully weatherized IP66 fixture for permanent outdoor installation
• Fully convection cooling using heat pipes technology
