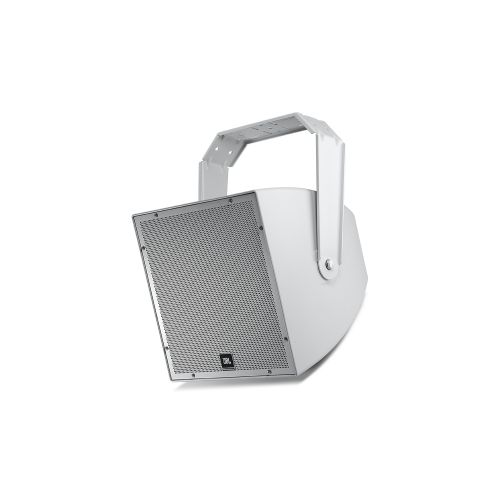

JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12 LF, AWC129

JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12 LF

Highly weather-resistant IP56 rating Consistent 90° x 90° broadband pattern control Components: • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 55 Hz – 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) direct 8Ω low-impedance.
$942.00
In stock
SKU AWC129
The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

SPECIFICATIONS
  • Frequency Range (-10 dB) 55 Hz – 20 kHz

  • Frequency Response (±3 dB) 80 Hz – 20 kHz

  • Coverage Pattern 90° x 90°

  • Directivity Factor (Q) 10.1 (1 k – 16 kHz)

  • Directivity Index (DI) 9.5 dB (1k – 16 kHz)

  • Long-Term System Power Rating (IEC) 400 W (1600 W peak), 2 hrs.

  • 250 W (1000 W peak), 100 hrs

  • Sensitivity (2.83V @ 1m) 96 dB (Ave. 80 Hz – 20 kHz)

  • Maximum SPL Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB

  • Crossover Network 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

  • Nominal Impedance 8 ohms

  • Transformer Taps 70V: 200W, 100W, 50W, 25W

    • 100V: 200W, 100W, 50W
  • Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.

  • High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.

  • HF Driver Protection Minimum audibility SonicGuard™ HF overload protection

  • Enclosure ABS with Glass enclosure, heavily braced

  • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.

  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

  • Dimensions 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back

  • Colors Available in gray (similar to Pantone 420C) and black (-BK)

  • Net Weight 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket

  • Shipping Weight 23.4 kg (51.5 lbs)

  • Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.

    • More Information
    ConditionBrand New
    Country of ManufactureChina
    ★★★★★
    ★★★★★
