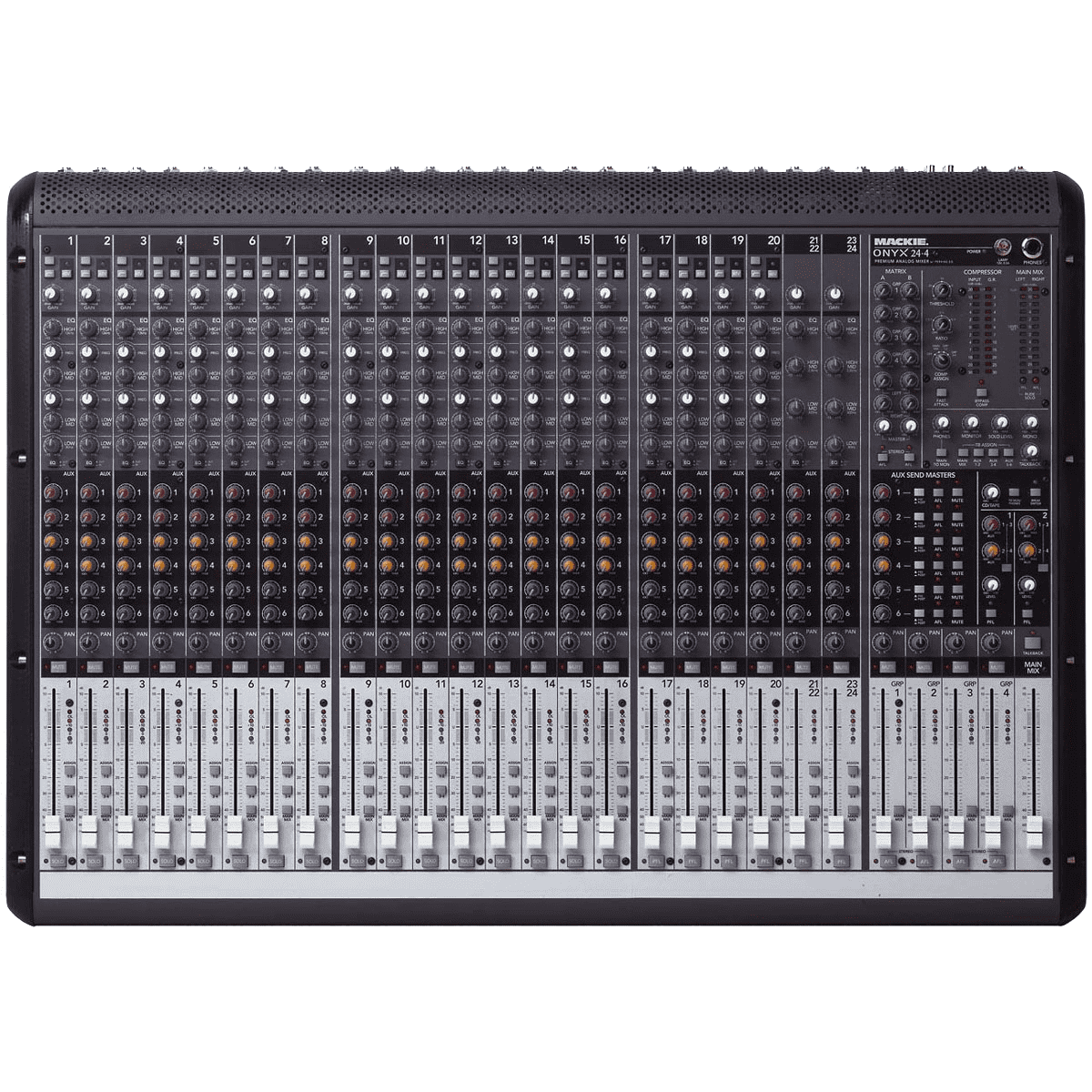

Mackie Onyx 24.4 24-Channel Analog Live Sound Console

Mackie's flagship Onyx 4-Bus series live sound consoles - the standard in mid-format mixing. The greatly enhanced Onyx feature set includes 100 mm Panasonic faders, microphone preamps, completely redesigned analog circuitry, Perkins EQ, and a built in assignable stereo compressor/limiter section - all at a price that won't break the bank.

• Number of channels 24 channel
• Number of buses 4 bus
• Control Gain Control

• Type Analog mixer

• Rack Mount Rack-mountable
• Channels Qty (for SD) 24-channel
• Frequency Response 10 Hz - 120 kHz
• Mic Phantom Power 48 V
• Control Types Knobs, faders
• Headphones Output Yes
• Meter Indicator 2 x LED level meters (12 segments)
• Features Channel PFL control, external lamp BNC connector, channel AFL control, switchable Low Cut input filters, switchable pre/post-fader sends, built-in assignable bus compressor/limiter

• Mic Channels 20 mono
• Mic Channels Connector XLR
• Line Channels 24 mono
• Line Channels Connector Phone stereo 6.3 mm
• EQ Band Qty 4
• Fader Size 100 mm
• Master Bus Fader Size 100 mm
• Input Level Switch Mic/line
• AUX Channels Tape In, Tape Out, 6x AUX Send, Monitor Out, Mono Out, 4x Group outputs, Main channel insert, 2x Matrix Out, Talkback Mic input, 20x channel inserts, 24x Direct outputs, 6x AUX In

• Connector Type 1 x headphones (phone stereo 6.3 mm) - top 20 x microphone (3 pin XLR) - rear 20 x balanced audio input (phone 6.3 mm) - rear 2 x balanced audio input (phone stereo 6.3 mm x 2) - rear 20 x channel insert (phone 6.3 mm) - rear 3 x balanced audio output (25 pin D-Sub) - rear 6 x AUX send (phone stereo 6.3 mm) - rear 6 x channel insert (phone 6.3 mm) - rear 2 x AUX return (phone stereo 6.3 mm x 2) - rear 1 x audio line-in (RCA x 2) - rear 1 x audio line-out (RCA x 2) - rear 1 x main channel output (XLR x 2) - rear 1 x balanced audio output (3 pin XLR) - rear 1 x main channel output (phone stereo 6.3 mm x 2) - rear 1 x channel insert (phone stereo 6.3 mm x 2) - rear 2 x balanced audio output (phone 6.3 mm) - rear 1 x monitor output (phone stereo 6.3 mm x 2) - rear 4 x balanced audio output (phone 6.3 mm) - rear 4 x channel insert (phone 6.3 mm) - rear 1 x microphone (3 pin XLR) - rear

• Nominal Voltage AC 120/230 V
• Frequency 50/60 Hz
• Max Power Consumption 120 W

• Width 31.2 in
• Depth 21.9 in
• Height 7.3 in
• Weight 39.46 lbs
