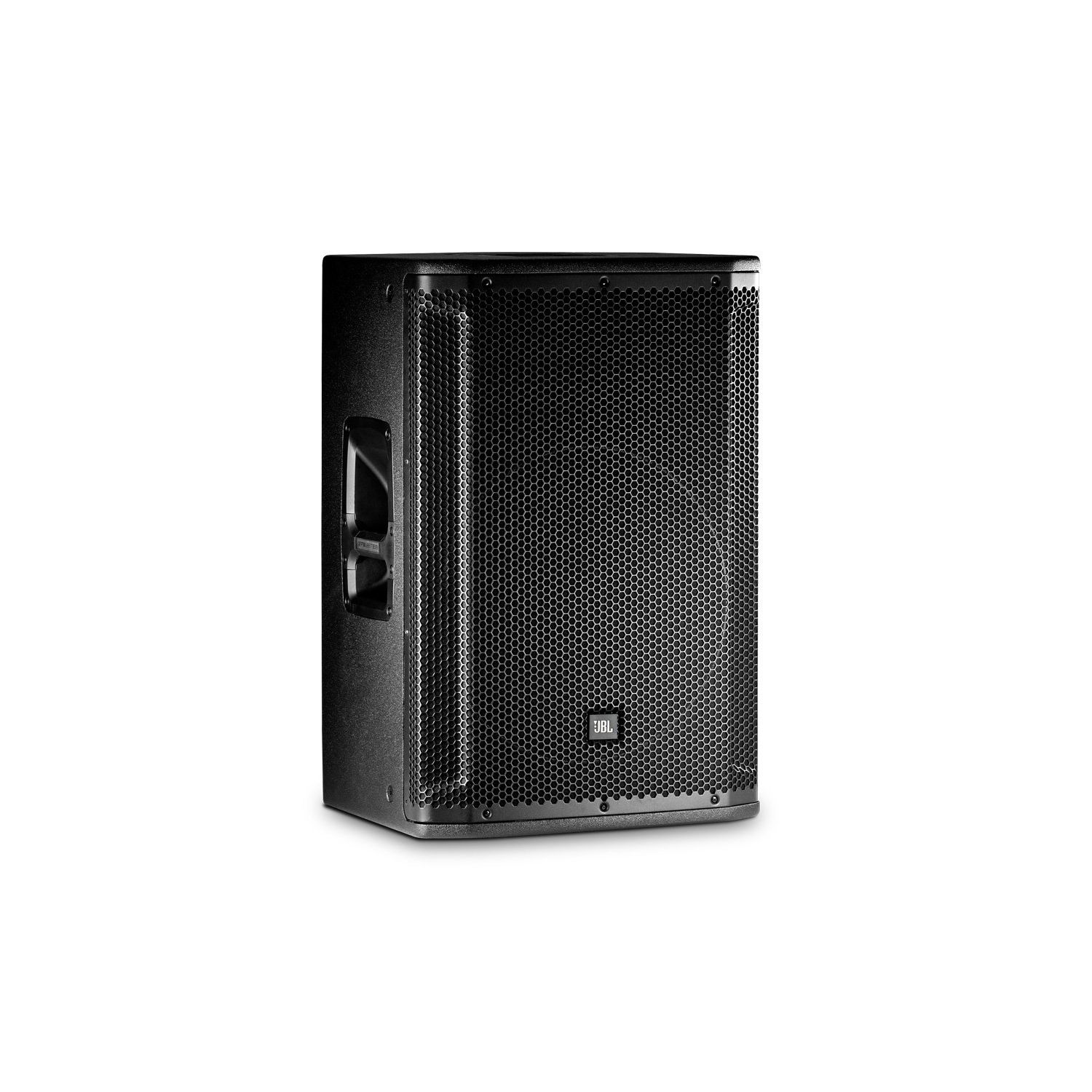

JBL SRX815 15" Two-Way Bass Reflex Passive System
$1,389.00
In stock
SKU
SRX815
JBL SRX815 15" Two-Way Bass Reflex Passive System
| Condition | Brand New |
|---|---|
| Country of Manufacture | Mexico |
JBL SRX815 15" Two-Way Bass Reflex Passive System
SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
FEATURES:
- Premium JBL Transducers
- Rugged, versatile enclosures
- Tunings available for Crown amps and dbx signal processors
- Fully supported in Audio Architect
- Power Handling: 3200W Peak, 1600W Program, 800W Continuous
- Frequency Range: 41Hz-20kHz
- Frequency Response: 56Hz-20kHz
- Max SPL: 136dB
- Coverage Pattern: 90 x 50
- Amplification options: Passive/Bi-Amp
TECHNOLOGY
PURPOSEFUL DESIGN
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.TRANSDUCER TECHNOLOGY
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
SPECIFICATIONS
| System Type | Passive 15”, two-way, bass-reflex | |
| Maximum SPL Output | 136dB | |
| Frequency Range (-10dB) | 41hz - 20khz | |
| Frequency Response (- 3dB) | 56hz - 20khz | |
| Sensitivity (1W/1m) | 95dB | |
| System Power Rating | 3200W Peak, 1600W Program, 800W Continuous | |
| Nominal Impedance | 8 Ohm | |
| Connectors | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) | |
| Operational Modes | Passive/Bi-Amp | |
| LF Driver | 2275H | |
| HF Driver | 2432H | |
| Coverage Pattern | 90 x 50 | |
| Crossover Frequency | 1.9khz | |
| Enclosure Material | 18mm plywood | |
| Monitor Angle | 50° | |
| Suspension/Mounting | Dual 36mm pole socket, 12 x M10 Suspension points | |
| Handles | 3 | |
| Finish | Obsidian Duraflex™ finish | |
| Grille | Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing | |
| Dimensions (L x W x H) | 18.82" x 18.03" x 27.20" (478mm x 458mm x 691mm) | |
| Weight | 57.0 lbs (25.9kg) | |
| Shipping Weight | 67.0 lbs (30.4kg) |
| Condition | Brand New |
|---|---|
| Country of Manufacture | Mexico |
