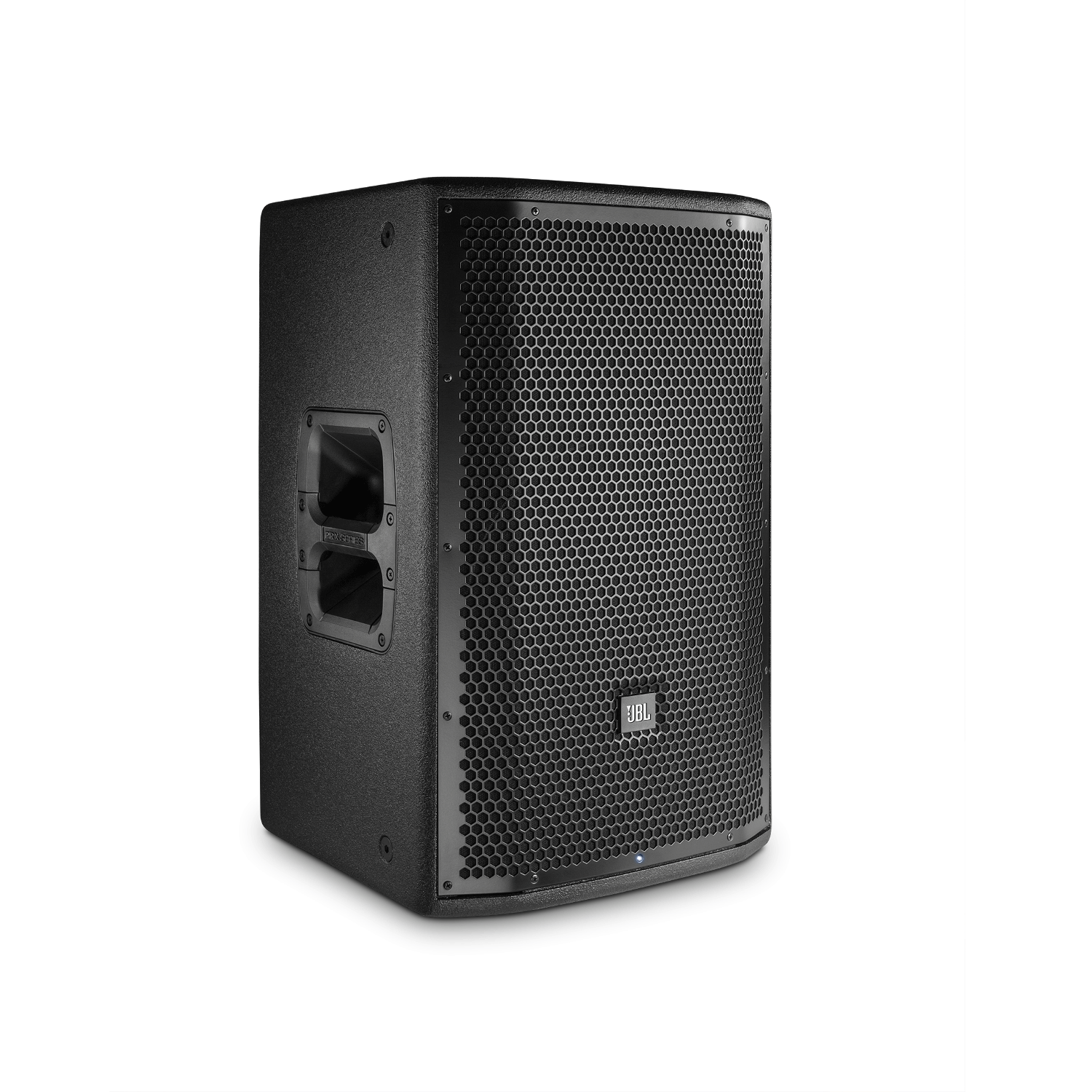

JBL PRX812W 12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi
$949.00
In stock
Only 1 left
SKU
PRX812W
JBL PRX812W 12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi
The JBL PRX812W is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812W delivers incredible volume in a lightweight and compact form factor.
FEATURES
- Built-in Wi-Fi for wireless control of your system from anywhere in the venue
- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
- Class-leading 1500-watt amplifier delivers ample power to fill your venue
- JBL Differential Drive® transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers
- Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
- Intelligent variable-speed fan activates only when needed to reduce noise
- Updated tuning delivers flat frequency response and smooth off-axis behavior
- Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
- Universal power supply for worldwide compatibility
- dbx Type IV™ limiting ensures clear, accurate sound at high volumes
- Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
APPLICATIONS
- PRX812W is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812W is a perfect match with a PRX818XLFW subwoofer, offering a high performance self-powered sub/sat system.
- The PRX812W is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
- All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
- The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
SPECIFICATIONS
| System Type | Self Powered 12”, two-way, bass-reflex | |
| Maximum SPL Output | 135 dB peak | |
| Frequency Range (-10 dB) | Main: 52.6-20k Monitor: 50.3 - 20k |
|
| Frequency Response (±3 dB) | Main: 58.1 - 20k Monitor: 59- 20k |
|
| Input Connectors | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input | |
| Input Impedance | 20K Ohms (balanced), 10K Ohms (unbalanced) | |
| Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio |
|
| EQ | User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application | |
| Dynamic Control (Input) | dbx Type IV™ limiter circuit | |
| Crossover Frequency | 1.850 kHz | |
| Design | Highly efficient Class-D amplifier | |
| Power Rating | 1500W (750W x 2) | |
| AC Power Input | 100V - 240V ~ 50/60 Hz | |
| LF Driver | 1 x JBL 272G 305 mm (12 in) woofer | |
| HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver | |
| Coverage Pattern | 90° x 50° nominal | |
| Directivity Index (DI) | 10.2 dB | |
| Directivity Factor (Q) | 10.4 | |
| Enclosure | Asymmetrical, 18 mm, plywood | |
| Suspension / Mounting | Dual 36 mm pole socket, 12 x M10 Suspension Points | |
| Transport | 1 x injection molded handle with backing cup | |
| Finish | Obsidian DuraFlex™ finish | |
| Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. | |
| Dimensions (H x W x D): | 599 mm x 385 mm x 341 mm (23.6 in x 15.1 in x 13.4 in) |
|
| Net Weight | 19.4 kg (42.5 lb) | |
| Gross Weight | 21.2 kg (48.0 lb) |
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
