JBL ASB6128 High Power 2 x 18 2242H SVG Driver

Name: JBL ASB6128 High Power 2 x 18 2242H SVG Driver
Brand: JBL
SKU: ASB6128
Price: 4582.80 USD
Availability: InStock

Be the first to review this product

$4,582.80

In stock

SKU

ASB6128

Large vent area for high output. Parallel/Discrete Switchable. For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

More Information
Condition	Brand New
Country of Manufacture	Mexico

Skip to the end of the images gallery

Skip to the beginning of the images gallery

JBL ASB6128 High Power 2 x 18 2242H SVG Driver, ASB6128

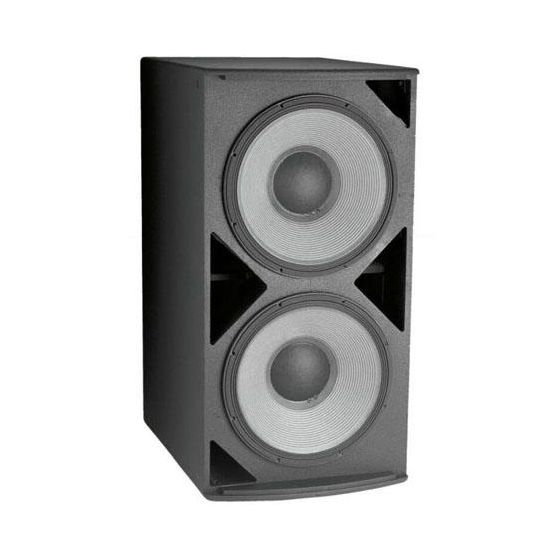

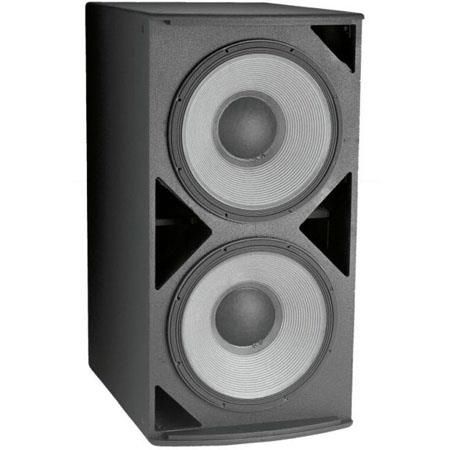

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.
Specifications

Frequency Range 28 Hz – 1 kHz (-10 dB)

Frequency Response 35 Hz – 1 kHz ( ± 3 dB)

Input Modes Drivers Parallel / Drivers Discrete

Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs

Long-Term System Power Rating (IEC) 1600 W (6400 W peak), 100 hrs

Maximum SPL 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)

100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)

System Sensitivity (dB-SPL, 1W @ 1m) 30 Hz – 100 Hz: 102 dB

100 Hz – 500 Hz: 102 dB

Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
