JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF

Name: JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF
Brand: JBL
SKU: AM5212/64
Price: 2341.65 USD
Availability: InStock

Be the first to review this product

$2,341.65

In stock

SKU

AM5212/64

60° x 40° Coverage 262H-1 Differential Drive® Low-Frequency Driver 2408H-1 High-Frequency Compression Driver Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion Rotatable waveguide for vertical or horizontal orientation Bi-Amp/Passive Switchable Available in Black, White and WRC/WRX weather resistant finishes

More Information
Condition	Brand New
Country of Manufacture	Mexico

Skip to the end of the images gallery

Skip to the beginning of the images gallery

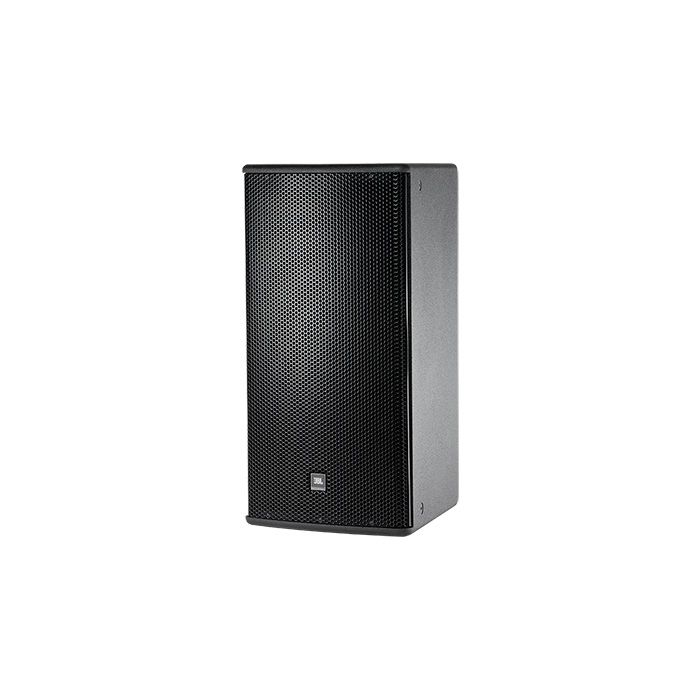

JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF, AM5212/64

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high-frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Specifications

Frequency Range (-10 dB) 37 Hz – 20 kHz

Frequency Response (±3 dB) 43 Hz – 18 kHz

Coverage Pattern 60° x 40°, rotatable waveguide

Crossover Modes Bi-amp/Passive switchable

Passive Crossover Frequency 1.6 kHz

Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs 300 W (1200 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs

Long-Term System Power Rating (IEC) Passive mode: 300 W (1200 W peak), 100 hrs

Maximum SPL Bi-amp mode: LF: 122 dB-SPL cont avg (128 dB peak) HF: 131 dB-SPL cont avg (137 dB peak)

System Sensitivity (1W @ 1m) Passive mode: 96 dB SPL

Low Frequency Driver 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil

Nominal Impedance 8 ohms

Sensitivity (1W @ 1m, within operational band) 115 dB SPL

High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil

Nominal Impedance 8 ohms

Sensitivity (1W @ 1m) 113 dB SPL

Waveguide PT-H64HF-1

Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood

Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish Black DuraFlex™ finish. White available upon request.

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications Mil-Std 810; IP-x3 per IEC529

Dimensions (H x W x D in vertical cabinet orientation) 711 x 369 x 458 mm (28.0 x 14.5 x 18.0 in)

Net Weight 20.2 kg (45 lb)

Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
