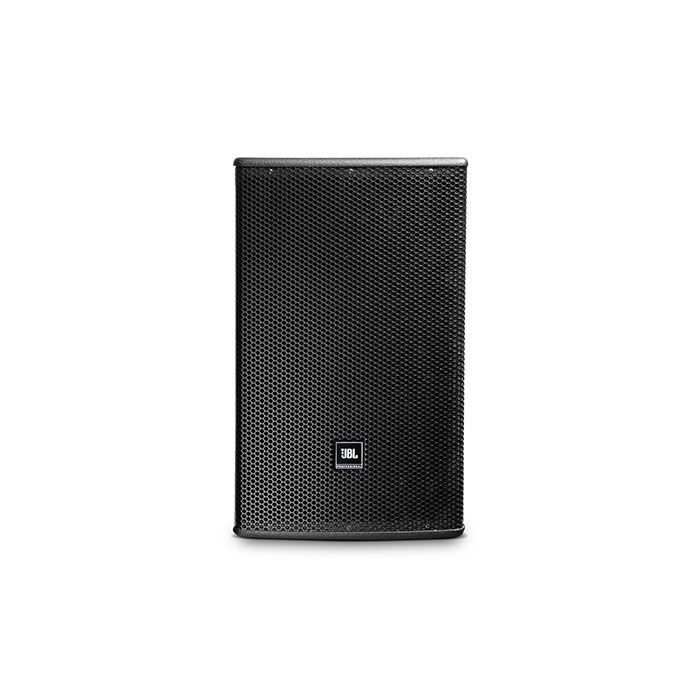

JBL AC299 Two-Way Full-Range Loudspeaker with 1 x 12 LF

AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

SPECIFICATIONS
Frequency Range (-10 dB)   63 Hz - 20 kHz
Frequency Response (±3 dB)   80 Hz - 18 kHz
System Sensitivity (1w @ 1m)   97 dB
Nominal Impedance   8 ohms
Maximum SPL (1m)   121 dB (127 dB peak)
Power Rating (Continuous/Program/Peak)   250 W/500 W/1000 W
Coverage Pattern   90° x 90° (H x V)
Crossover   1.5 kHz
Low Frequency Driver   1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
High Frequency Driver   1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
Input Connector   Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure   15 mm multi-ply hardwood plywood
Grille   Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish   Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting   14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D)   600 mm x 370 mm x 392 mm (23.6 in x 14.5 in x 15.4 in)
Net Weight   17.3 kg (38.1lbs)
