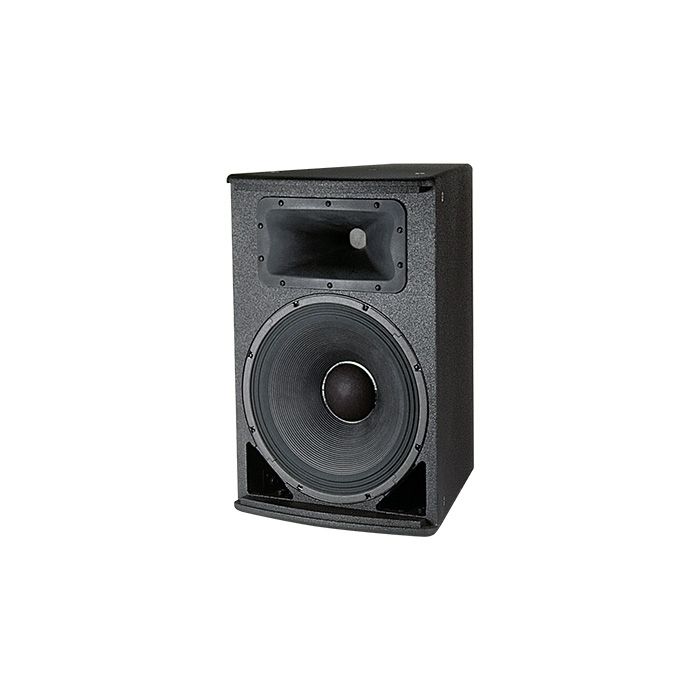

JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF

Name: JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF
Brand: JBL
SKU: AC2215/64
Price: 1557.75 USD
Availability: InStock

Be the first to review this product

$1,557.75

In stock

SKU

AC2215/64

PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.

Bi-Amp/Passive Switchable.

Optional U-Bracket Model MTU-2.

For fixed installation applications requiring a compact cabinet, such as small performing arts facilities, theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay/fill locations of larger systems.

More Information
Condition	Brand New
Country of Manufacture	Mexico

Skip to the end of the images gallery

Skip to the beginning of the images gallery

JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF, AC2215/64

AC2215 speakers are compact 2-way full-range loudspeaker systems comprised of one 380 mm (15 in) low frequency driver and one voice-coil compression driver.

SPECIFICATIONS
Frequency Range 42 Hz - 19 kHz (-10 dB)
Frequency Response 50 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern 60°x 40°
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Slopes 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES) LF: 275 W (1100 W peak), 2 hrs / 250 W (1000 W peak), 100 hrs / HF: 30 W (120 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL Bi-amp mode: LF: 121 dB-SPL cont avg (127 dB peak) / HF: 129 dB-SPL cont avg (135 dB peak)
Maximum SPL Passive mode: 121 dB-SPL cont avg (127 dB peak)
System Sensitivity Passive mode: 97 dB SPL (1W @ 1m)
