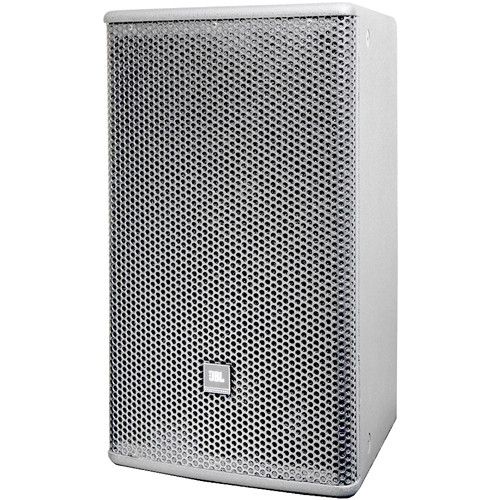

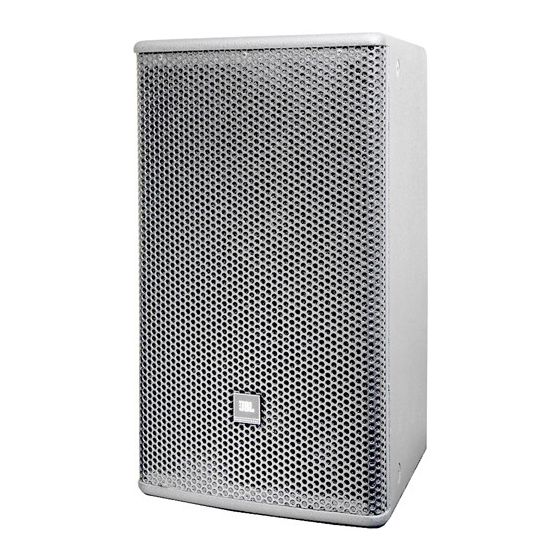

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications.
Specifications
Frequency Range (-10 dB) 68 Hz - 20 kHz
Frequency Response (±3 dB) 85 Hz - 18kHz
System Sensitivity (1w @ 1m) 95 dB
Nominal Impedance 8 ohms
Maximum SPL(1m) 118 dB (124 dB peak)
Power Rating (Continuous/Program/Peak) 200 W/400 W/800 W
Coverage Pattern 90° x 50° (H x V)
Crossover 1.8 kHz
Low Frequency Driver 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver
with 66 mm (2.5 in) voice-coil
High Frequency Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
Net Weight 13.1 kg (28.8 lbs)
More Information
Condition
Brand New
Country of Manufacture
China
