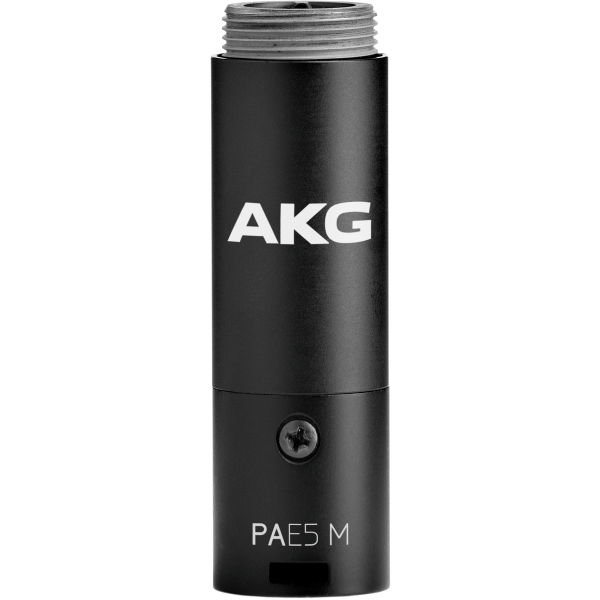

AKG PAE5 M Reference Phantom Power Module
$99.99
In stock
SKU
3165H00160
AKG PAE5 M Reference Phantom Power Module
| Condition | Brand New |
|---|---|
| Country of Manufacture | Taiwan, Province of China |
Executive modularity
for use in theatres, houses of worship and conference rooms
The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the mic on status. With its wide voltage range the module will fit most available microphone mixers.
The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Extra feeding of LED ring to show mic status
for use with automixers including logic outputs
Highly reliable contacts to mounting modules
prevent contact problems and ensure extra-long life
RFi Shield technology
provides high immunity to radio-frequency interference
Feeds all DAM+ Series capsules
for highest flexibility
Switchable bass roll off
for reduction of body noise and proximity effect
